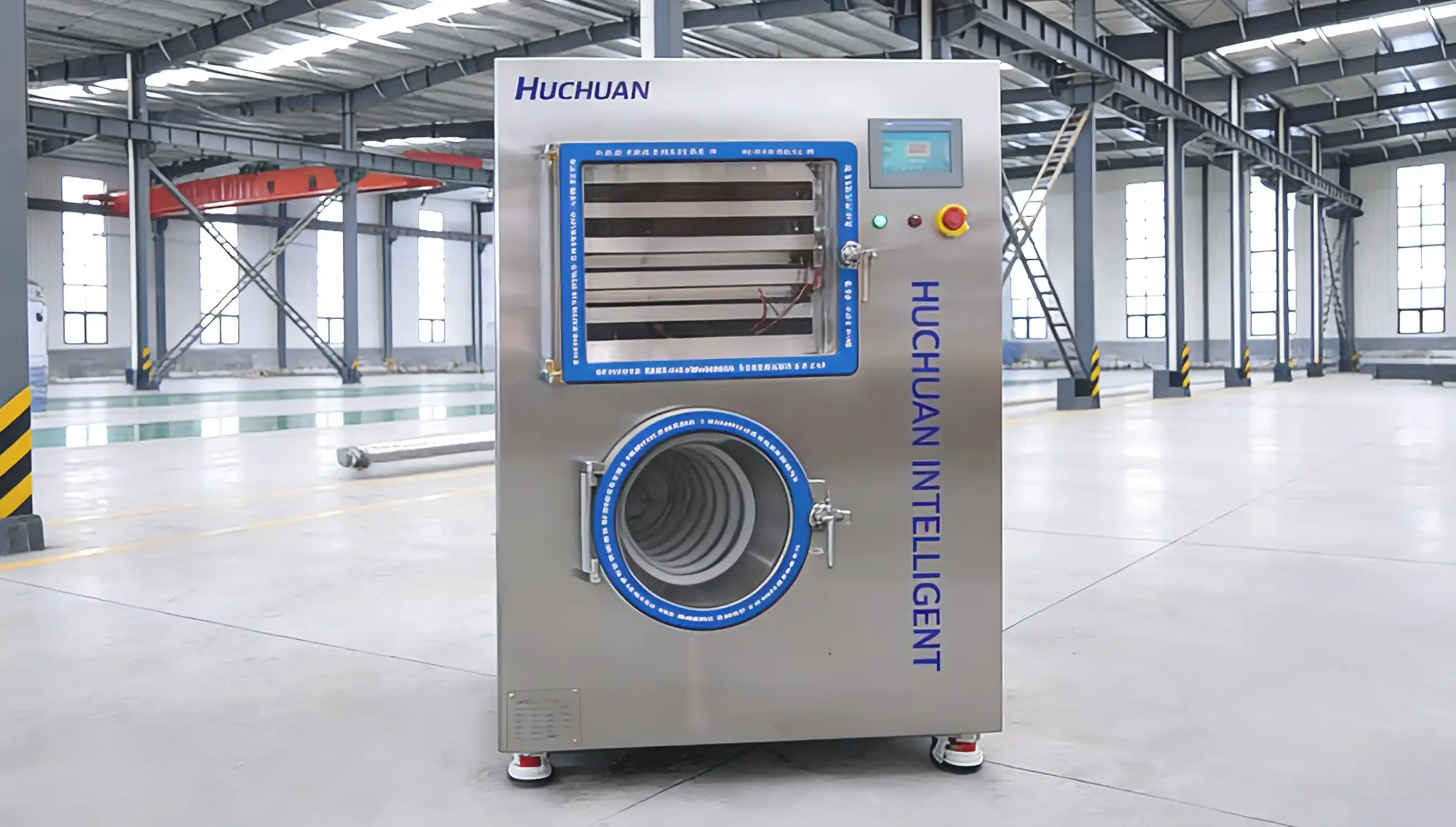

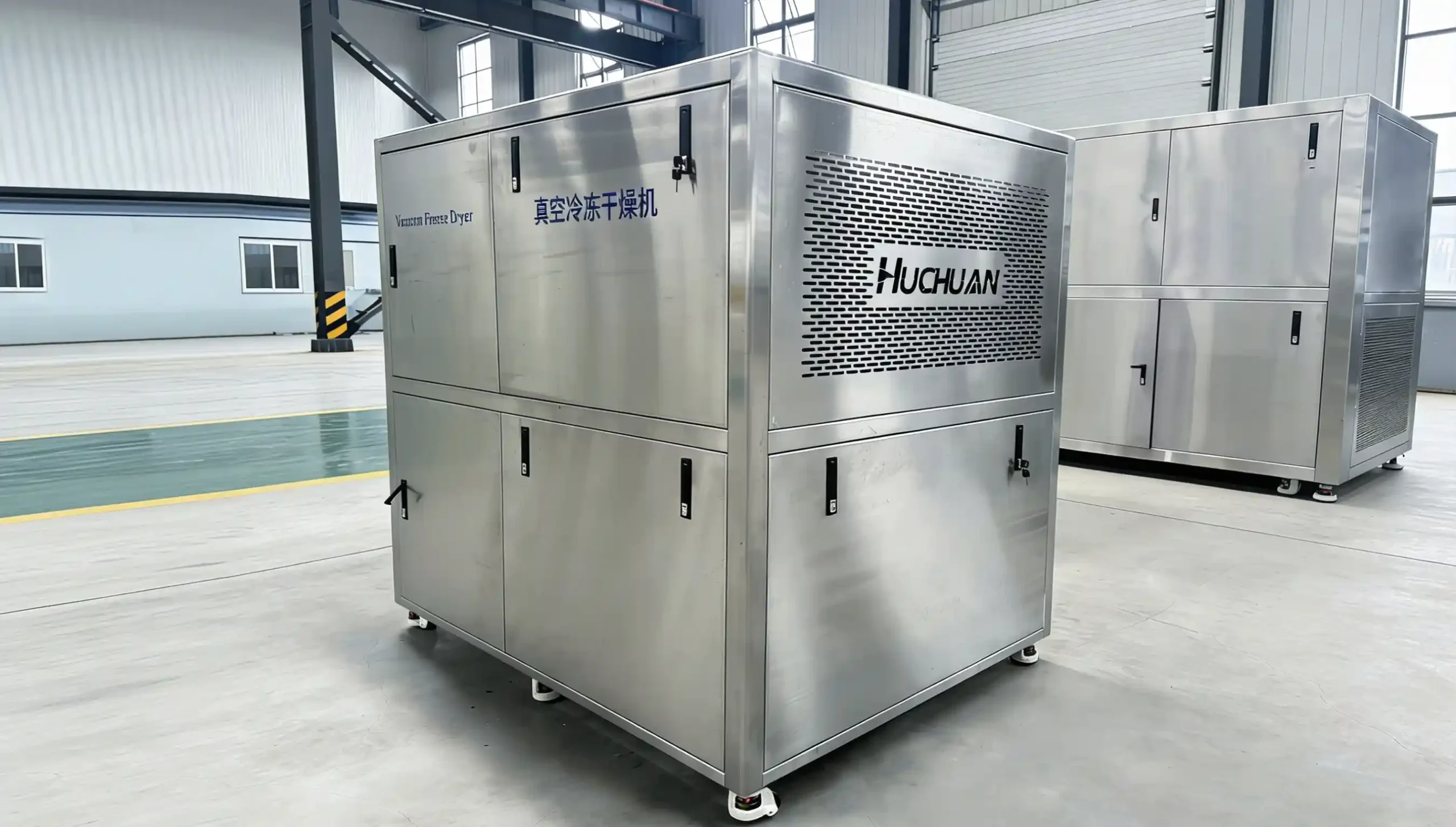

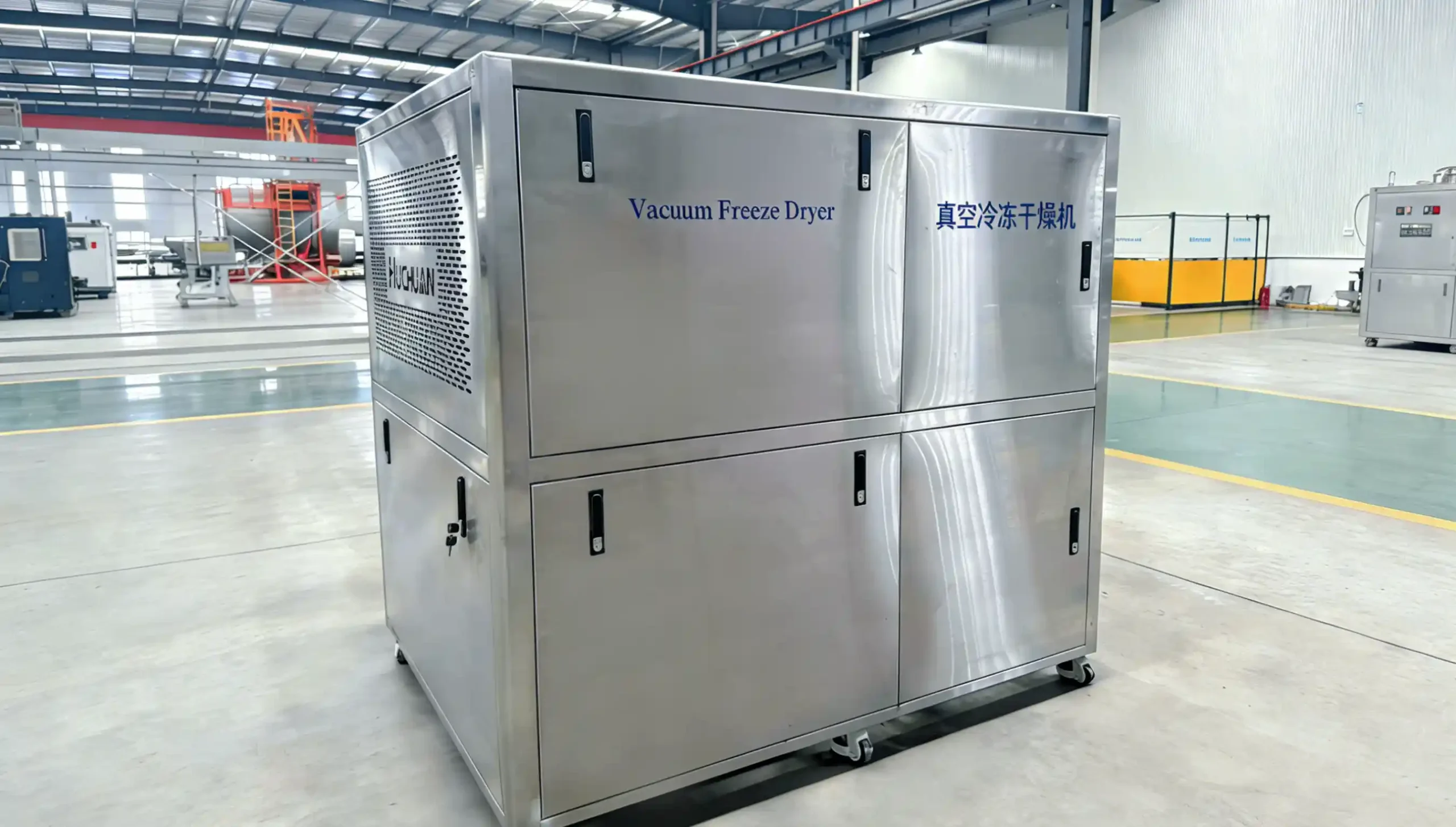

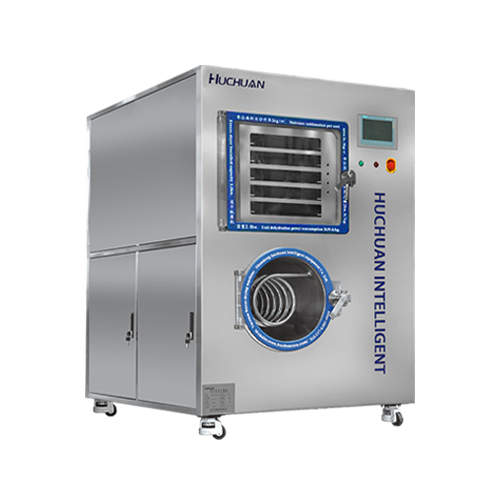

HTFD5L-HTFD60L(0.5-5)m²/R
(Pre-freezing function and freeze drying function are separate)
Professional Separation of Pre-freezing & Drying for Maximum Efficiency.
From pre-freezing to drying, it all happens in one machine. It takes up less space and is more efficient.
Food
Fruits such as mangoes, strawberries, and durians (maintaining a high reduction rate of 14% solids).
Medicinal materials
Ginseng, cordyceps, deer antler and other precious medicinal materials.
| Model | HTFD5L-0.5 m²/R | HTFD10L-1 m²/R | HTFD20L-2 m²/R | HTFD30L-3 m²/R | HTFD60L-5 m²/R |
|---|---|---|---|---|---|
| Function | 🔄 Only freeze dried function, need match with freeze machine to use together | ||||
| Dehydration capacity (L) | 5 L | 10 L | 20 L | 30 L | 60 L |
| Raw material input capacity (kg/batch) based on material characteristics |
6 kg | 12 kg | 25 kg | 36 kg | 60 kg |
| Heating area (m²) | 0.5 | 1 | 2 | 3 | 5 |
| Quantity of material trays (pieces) | 3 | 5 | 10 | 15 | 18 |
| Tray dimensions (mm) | 500×350×32 | 560×370×32 | 560×370×32 | 560×370×32 | 560×370×32 |
| Operating temperature range (°C) | 🌡️ Room temperature – 90°C | ||||
| Heating type | 🔥 Electric Heating | ||||
| Estimated batch processing time (h) | ⏱️ 12H ~ 48H (drying time varies depending on the moisture content of the material) | ||||
| Installation power (kw) | ⚡ Depending on the model and configuration | ||||
| Cooling medium | ❄️ Freon medium (R507) / Customization accepted | ||||
| Material | 🔩 Stainless steel (SUS304) | ||||
| Dimension | 📐 Depending on the model / Customization accepted | ||||
| Customizable items |
|
||||
| Dry product water content (%) | 💧 Below 5% | ||||
For further questions, please contact us.
Sure, we can provide a complete production line. To better equip you with the production line, may I know exactly what products you want to handle?
We have a machine of model that can achieve this input capacity. Since the moisture content of different products varies, what product would you like to freeze-dry?
Three months production lead time.
We provide overseas engineer installation and training services.
we accept customization.（logo、voltage、power、Equipment dimensions、Equipment configuration）
Different models have different production times, generally within 45-60 working days.
